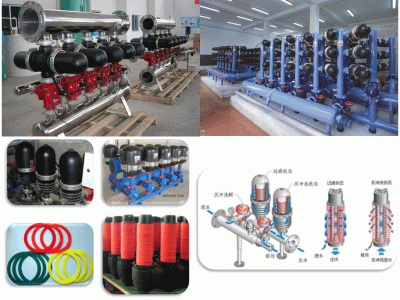

Disc filter

Disc filter is a special design, refined lamination on both sides of a large number of certain micron size grooves, these grooves intersect, thus creating a series of unique filter channels of deep filter units, each filter unit installed in a pressure and corrosion resistant filter cylinder to form a filter. It is widely used for pretreatment of water treatment system, circulating water treatment system and so on.
Main features:
1, stable filtration efficiency and precise filtration.
2, efficient backwash, short backwash time, water and energy saving.
3, full automatic operation, continuous filtration
4, low operating cost, reliable operation and long service life.
Main technical parameters:
1, work pressure: 0.3 ~ 0.8MPa
2, backwash pressure: 0.28 ~ 0.6MPa
3, backwash time: 5~20 seconds.
4, backwash water consumption: 30~100 liters (single filter head)
5, system pressure loss: 0.001 ~ 0.08MPa
6, working temperature: 4~75 degree C
7, PH:4.0 to 13
8, traffic: according to customer requirements
